Fourier Transform
In essence, the Fourier transform is the decomposition of signals into a sum of Complex Sinusoids of varying frequencies. With a frequency representation, we get a clearer representation of the signal's makeup. For instance, if we took a Fourier Transform of an audio signal, we might be able to easily see noise at 60 Hz from the power grid. As with most transforms, we can go both ways; towards frequency (Analysis) and towards time (Synthesis/Inverse).
The Basics¶
A helpful 3Blue1Brown Video
Why Fourier is Important
- Fourier transforms are all about taking a signal or sequence and thinking about it as a series (sum) of sine and cosine waves.

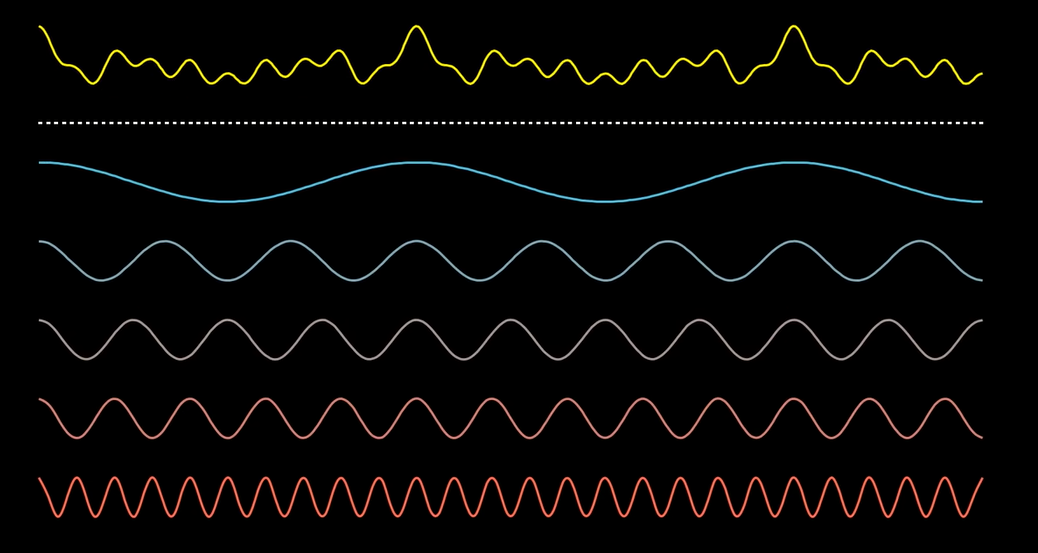

- Oftentimes we only see the sum of all the smaller components (the yellow line above)
- Typically, our goal is to:
- 1. Identify frequency makeup (the individual sinusoids which could represent our signal)
- 2. Do something to a particular group of frequencies, in which case we need a frequency representation of a signal so that we can scale desired portions appropriately.**
Building the Continuous Fourier Transform from the Ground-Up

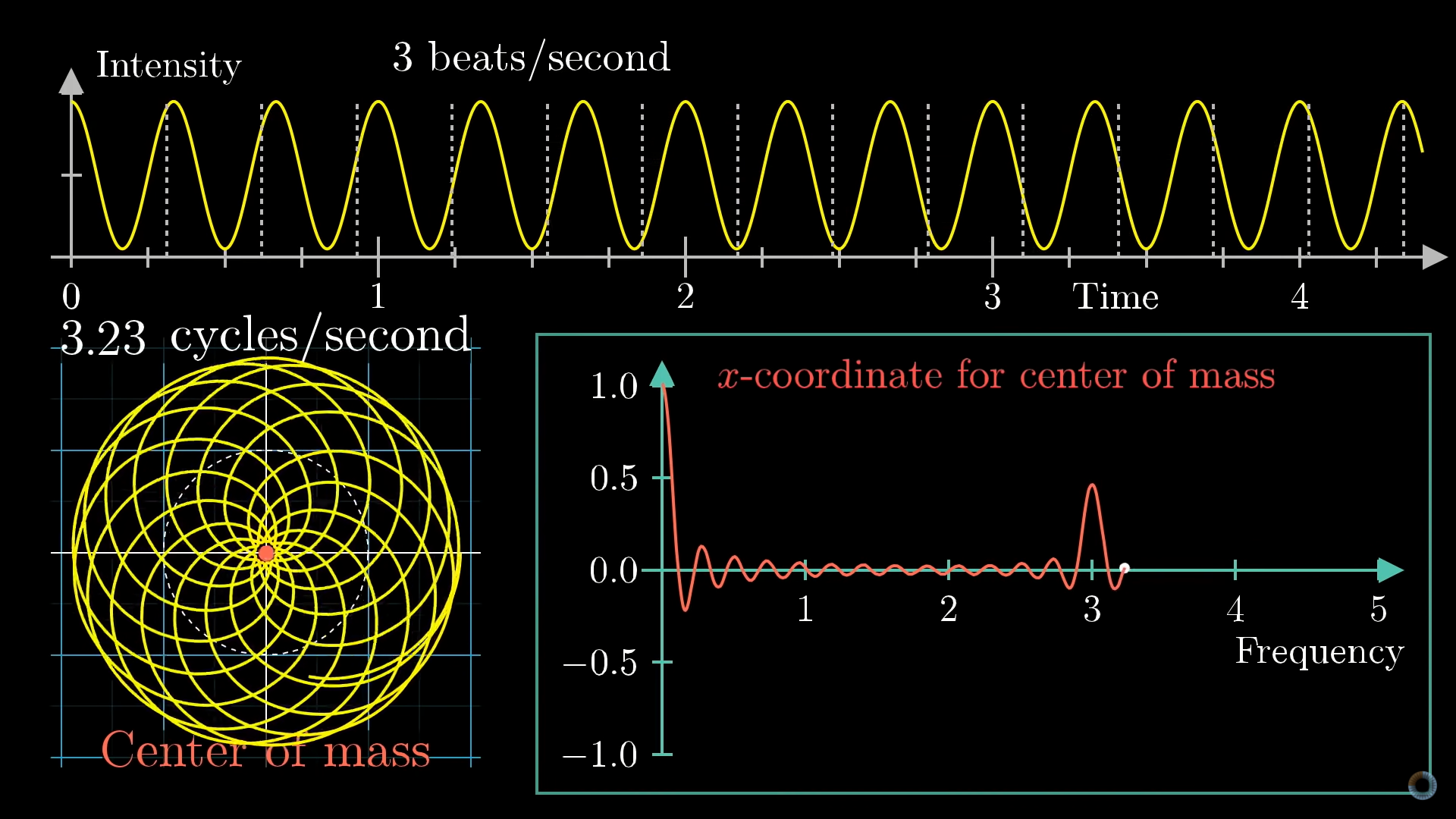

- 3Blue1Brown shows it in a pretty elegant way in this picture.
- At the top, we have the input signal. It's got a constant frequency or set of frequencies.
- On the bottom left, we have a 2D graph on the Complex Plane.
- We create this graph by "winding"- using the amplitude of the graph sampled at some other frequency. You can visually see the periods of this other frequency as the dotted lines on the top graph.
- Rotating with the other frequency, the radius from the origin at each angle is determined by the sampled real magnitude of the input.
- Then we look at the center of mass about the plane. If the center of mass is near the origin, that means that the frequency we are winding with does not have a strong correlation with any particular amplitude. If it is leaning to one side, that means that we have roughly the same amplitude in the same places every revolution.
- On the bottom right, we have the real value of the center of mass of the circle.
- As we change the winding frequency, we begin to see the full picture- where the center of mass has little to no correlation, and where it is strongly pulled to one direction. In this way we can differentiate between the different frequencies.
- If we do this continuously, we are essentially creating the Spectrum.
- Roughly speaking, \(\(\begin{array}{} X(e^{j2\pi F})\approx \frac{1}{(t_2-t_1)}\int\limits_{t_1}^{t_2}g(t)e^{-j2\pi Ft}dt\\\text{The "Almost" Continious Time Fourier Transform}\end{array}\)\)
- In other words, the Fourier Transform is essentially really just the mean of a function that is rotated around a circle at \(F\) cycles/second over time interval \(t_{2}\) to \(t_1\)
- The only real distinction is that rather than the average over time, we usually just find the total sum. This is just a scaling difference, so the graph is essentially the same.
- The negative in the complex exponential is there because the convention is to rotate CW rather than CCW.
\(\(\LARGE \begin{array}{} X(e^{j2\pi F}) = \int\limits_{t_1}^{t_2}g(t)e^{-j2\pi Ft}dt\\\text{The Continious Time Fourier Transform}\end{array}\)\)
- Keep in mind that the Fourier Transform typically produces Complex coefficients, so oftentimes you will need to explicitly find the Magnitude to correctly work with in the frequency domain.
Discrete Fourier¶
Continuous-Time to a Discrete-Time Representation
- Oftentimes in reality, we are sampling a real thing to obtain a partial understanding of a continuous thing -> Continuous input \(g(t)\) replaced with DT input \(x[n]\).
- Due to sampling, the notion of Normalized Frequency results from substituting \(\large \frac{n}{F_{s}}\) for \(t\)
- This also brings in issues related to Aliasing
- Since we are really just evaluating at specific values of \(n\), we can simplify the integral into a sum at integer multiples of \(n\).
- The Discrete-Time Fourier Transform is almost exactly the same as the Continuous Time version described above. See it's page for more details
\(\(\begin{array}{}\LARGE X(e^{j2\pi f})=\sum\limits_{n=-\infty}^{\infty}x[n]e^{-j2\pi fn}\\\text{The DTFT}\end{array}\)\)
Discrete (Time and Frequency) Fourier Transform
- If we take sample the DTFT on it's frequency axis, we get the Discrete Fourier Series and DFT, which are Discrete in both Time and Frequency. Typically, these (particularly the DFT) are used, because they are much easier for computers to calculate than the continuous DTFT
\(\(\begin{array}{}\LARGE X[k]=\sum\limits_{n=0}^{N-1}x[n]e^{-jk \frac{2\pi}{N}n}\\\text{The DFS and DFT (Analysis Equation)}\end{array}\)\) - Where \(X[k]\) is the k-th coefficient of the DFT/DFS, j is the imaginary unit, and the sum is taken over the length of one period of the sequence (DFS) or the length of the sequence (DFT).
- DFS describes infinite-length, periodic signals, whereas the DFT describes finite-length signals. A good discussion can be seen here, https://dsp.stackexchange.com/a/18157. The output of this equation will be the exact same for a DFT and a DFS.

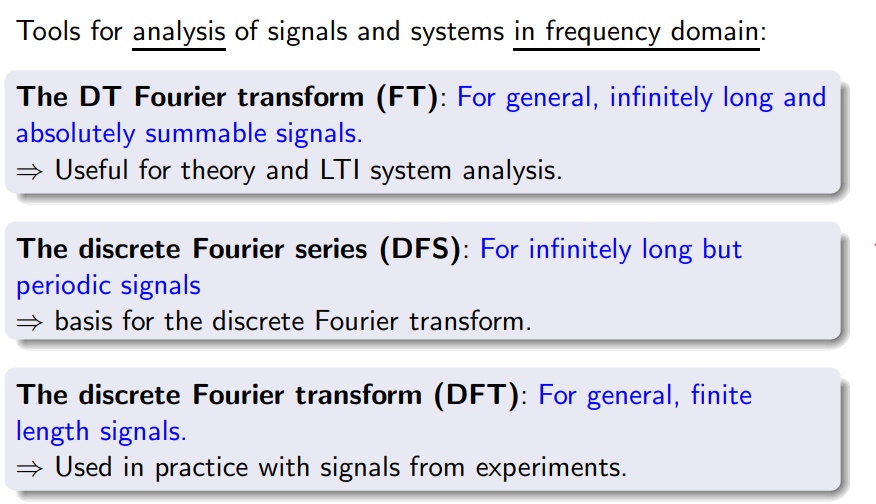

What Fourier do I apply?
Domain Comparison¶
| Item | [[Discrete-Time Signal|Discrete-Time]] | Frequency |
|---|---|---|
| System | \(h[n]\) Impulse Response | \(\large H(e^{j2\pi f})\) Frequency Response |
| Signal | \(x[n]\) Sequence | \(\large X(e^{j2\pi f})\) [[DTFT|Spectrum]] |
| Output | \(y[n]=x[n]\ast h[n]\) Convolution | \(Y(e^{j2\pi f})=H(e^{j2\pi f})X(e^{j2\pi f})\) Multiplication! |
| Units | Units | Units/Normalized Freq |
